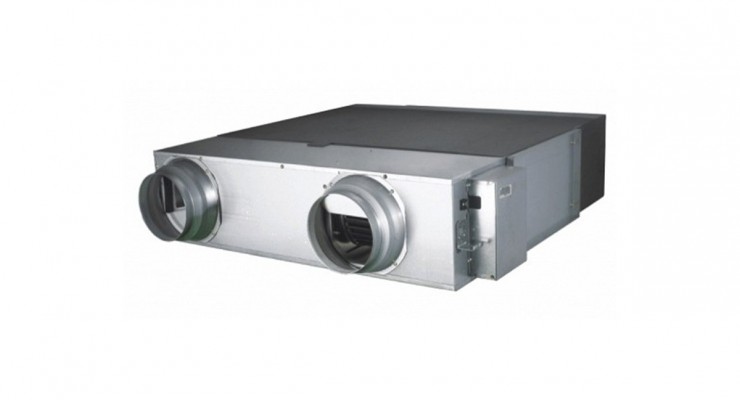

Energy recovery unit Samsung AN035JSKLKN
In stock
1,750.00 €
Features:
- Flow rate up to 350 m3/h
- Pressure up to 155 Pa
- Power consumption 0.050 - 0.115 kW
- Ventilation module with energy recovery
- Cellulose heat exchanger
- High-efficiency air filter (class F7)
- Operation in bypass mode when there are small temperature differences between the indoor and outdoor environment (automatic or manual)

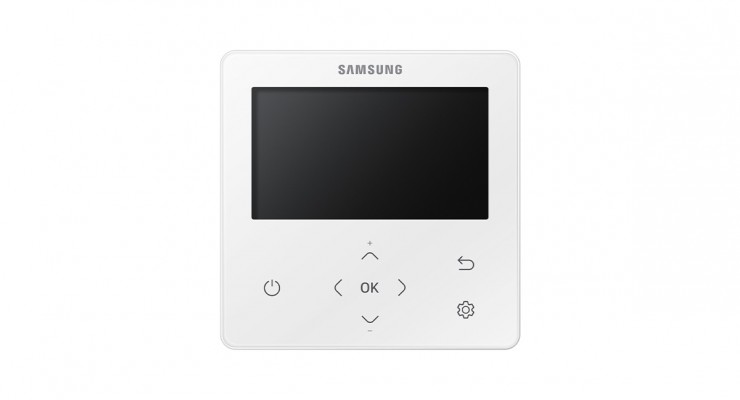

The price of the set includes the wired remote controller MWR-WG00JN
Buy with
Heat Recovery Method of ERV System
Thanks to air inlets and outlets on both sides, the two-way ventilation design achieves exceptional efficiency. The heat exchange element is specified to recover energy while removing discharged contaminants.
Flexible Installation
This flexibility translates into time savings when maintaining multiple units. By introducing ERV with the control boxes facing a single service hole, businesses can reduce the expenditure and space.
New Diamond Type Heat Exchanger
Compact and extremely efficient, the new diamond-type heat exchanger is designed to optimise airflow. Businesses will benefit from reduced costs and a comfortable environment.
Auto Mode
ERV automatically changes its operation mode depending on the temperature difference between your indoor and outdoor environment to save energy.
| Technical specifications for Energy recovery unit Samsung AN035JSKLKN/EU | ||||
|---|---|---|---|---|
| Type | ERV | |||
| Model Name | AN035JSKLKN/EU | |||
| Power Supply | Φ, #, V, Hz | 1,2,220-240,50/60 | ||
| Mode | - | Temperature Exchange | ||
| Performance | Air Volume | cm/h | 350 | |
| Power Input | Turbo | W | 115 | |
| High | W | 80 | ||
| Low | W | 50 | ||
| Current | Turbo | A | 0.70 | |
| Fan | Air Flow Rate | Turbo | cm/h | 350 |
| High | cm/h | 350 | ||
| Low | cm/h | 256 | ||
| External Static Pressure | Turbo | Pa | 155 | |
| High | Pa | 100 | ||
| Low | Pa | 83 | ||
| Temperature Exchange Efficiency |
Cooling | Turbo | % | 70.00 |
| High | % | 70.00 | ||
| Low | % | 74.00 | ||
| Heating | Turbo | % | 70.00 | |
| High | % | 70.00 | ||
| Low | % | 74.00 | ||
| Effective Enthalpy Exchange Efficiency |
Cooling | Turbo | % | 50.00 |
| High | % | 50.00 | ||
| Low | % | 55.00 | ||
| Heating | Turbo | % | 70.00 | |
| High | % | 70.00 | ||
| Low | % | 76.00 | ||
| Field Wiring | Power Source Wire | mm2 | 1.5 ~ 2.5 | |
| Transmission Cable | 0.75 ~ 1.5 | |||
| Net Weight | kg | 42.50 | ||
| Gross Weight | 53.50 | |||
| Duct Size | mm | 200.00 | ||
| Net Dimensions (WxHxD) | 1012 x 270 x 1000 | |||
| Gross Dimensions (WxHxD) | 1299 x 337 x 1183 | |||
- Specifications may be subject to change without prior notice.
- Air Volume/ External Static Pressure, Comply with KS Heat Exhaust Ventilation System Standards(KS B6879).
- Heat Exchange/Temperature Exchange Efficiency, Comply with regulations to promote high efficiency energy devices, [Cooling], Indoor(24˚C DB/17˚C WB), Outdoor(35˚C DB/24˚C WB) [Heating], Indoor(22˚C DB/13.9˚C WB), Outdoor(2˚C DB/0.44˚C WB)
- Sound level was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
- These products contain R410A which is fluorinated greenhouse gas.
| Manufacturer | Samsung |
| Type | Energy recovery ventilator |
| Model | AN035JSKLKN/EU |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Power Input (W) | 115 / 80 / 50 |
| Air Flow (m3/h) | 350 / 350 / 256 |
| Transport Sizes WxHx D (mm) | 1012 x 270 x 1000 |
| Weight (kg) | 42.50 |
