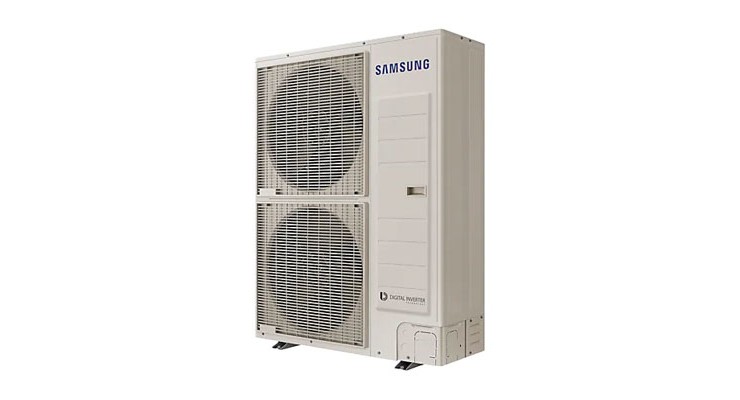

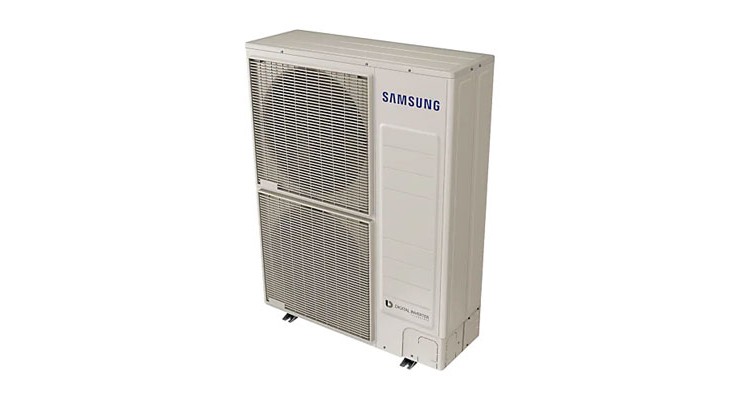

DVM System Samsung AM060NXMDER/EU
DVM System Samsung AM060NXMDER/EU
DVM System Samsung AM060NXMDER/EU
DVM System Samsung AM060NXMDER/EU
DVM System Samsung AM060NXMDER/EU
DVM System Samsung AM060NXMDER/EU

DVM System Samsung AM060NXMDER/EU

  • Cooling
    15.50 kW
  • Heating
    15.50 kW
  • EER
    3.75
  • COP
    4.45
  • Noise
    53 dB

Technical Specifications for DVM System Samsung AM060NXMDER/EU
Model AM060NXMDER/EU
Power Supply Φ/V/Hz 1 / 220-240 / 50
HP 6
Capacity Cooling kW 15.50
Capacity Heating kW 15.50
Power Input Cooling kW 4.13
Power Input Heating kW 3.65
Current Input Cooling A 6.3
Current Input Heating A 5.3
Current MCA A 30.0
Current MFA A 40
EER1 (Cooling) 3.75
COP1 (Heating) 4.45
SEER1 9.50
Compressor (Type) Twin BLDC Rotary
Output kW 4.04
Oil (Type) PVE
Oil (Initial Charge) cc 1,700
Fan (Type) Propeller / BLDC
Air Flow Rate m3/min 100
External Static Pressure mmAq 3
Liquid Pipe ø, mm 9.52
Gas Pipe ø, mm 19.05
Installation Max. Length m 150
Installation Max. Height m 50
Refrigerant (Type) R410A
Factory Charging kg / tCO2e 3.3 / 6.90
Sound Pressure2 dB(A) 53
Sound Power2 dB(A) 70
Weight kg 100
Dimensions (W x H x D) mm 940 x 1210 x 330
Operating Temperature (Cooling) °C -5 ~ 48
Operating Temperature (Heating) °C -25 ~ 26

Notes:

1Performances are based on the following test conditions:

  • Cooling: Indoor temperature: 27°C DB, 19°C WB
    Outdoor temperature: 35°C DB, 24°C WB
  • Heating: Indoor temperature: 20°C DB, 15°C WB
    Outdoor temperature: 7°C DB, 6°C WB
  • Equivalent refrigerant piping: 7.5 m, Level differences:0 m

2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.

Manufacturer Samsung
Type Central air conditioning
Technology Inverter
Series DVM S Eco Heat Recovery
Outdoor Unit AM060NXMDER/EU
Power supply (V/ø/Hz) 220-240 / 1 / 50
Cooling Capacity (kW) 15.50
Heating Capacity (kW) 15.50
EER (Energy Efficiency in Cooling) 3.75
COP (Energy Efficiency in Heating) 4.45
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 53
Sound Power Outdoor Unit - Cooling/Heating dB(A) 70
Air Flow Outdoor Unit (m3/min) 100
Dimensions - Outdoor Unit WxHxD (mm) 940 x 1210 x 330
Weight - Outdoor Unit (kg) 100
Piping Connections - Liquid/Gas (mm) 9.52 / 19.05
Maximum Pipe Lenght (m) 150
Maximum Height Difference Between Indoor Units (m) 50
Operation Range - Cooling (°C) -5 ~ 48
Operation Range - Heating (°C) -25 ~ 26
Refrigerant R410A
