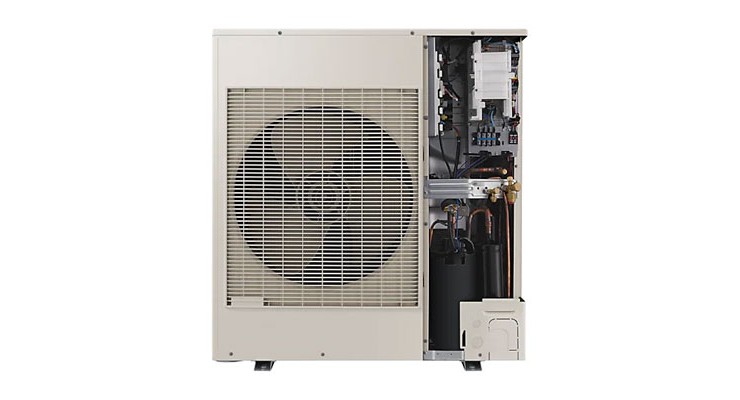

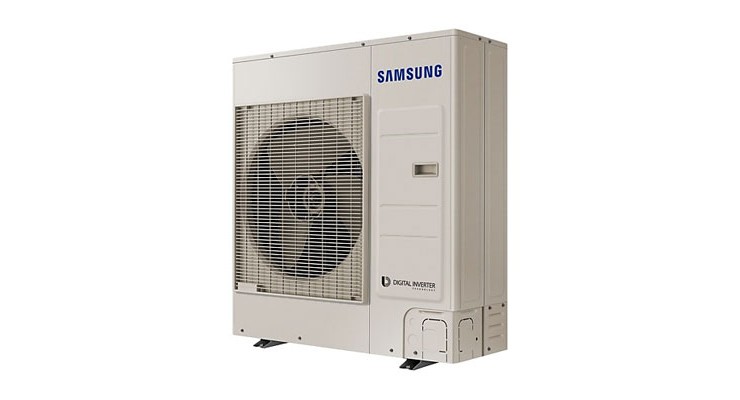

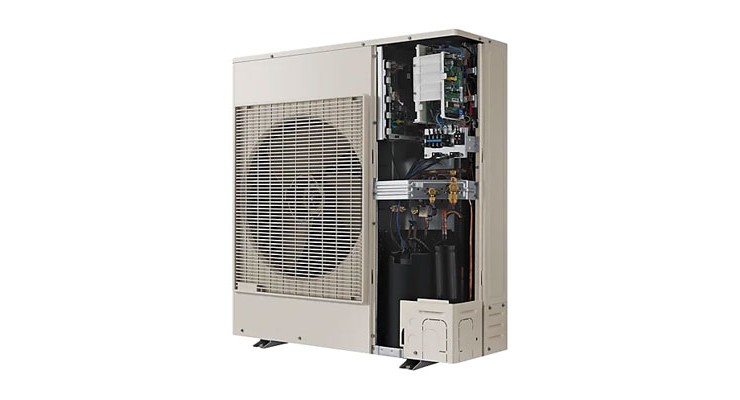

DVM System Samsung AM050KXMDEH/EU
- Cooling
14.00 kW - Heating
14.00 kW - EER
3.50 - COP
4.12 - Noise
55 dB
| Model | AM050KXMDEH/EU | |
| Power Supply | Φ/#/V/Hz | 1 / 2 / 220-240 / 50 |
| HP | 5 | |
| Capacity Cooling | kW | 14.00 |
| Capacity Heating | kW | 14.00 |
| Maximum number of connectable indoor units | ea | 8.00 |
| Total capacity of the connected indoor units (Min./Max.) | kW | 7.00 / 18.20 |
| Power Input Cooling | kW | 4.00 |
| Power Input Heating | kW | 3.40 |
| Current Input Cooling | A | 19.50 |
| Current Input Heating | A | 16.50 |
| Current (MCA) | A | 27.0 |
| Current (MFA) | A | 40 |
| EER Cooling | W/W | 3.50 |
| COP1 Heating | W/W | 4.12 |
| ESEER | W/W | 6.71 |
| Compressor (Type) | Twin BLDC Rotary | |
| Oil (Type) | PVE | |
| Oil (Initial Charge) | cc | 1,700 |
| Fan (Type) | Propeller | |
| Air Flow | m3/min | 70 |
| External Static Pressure | Pa | 29.40 |
| Liquid Pipe | ø, mm | 9.52 |
| Gas Pipe | ø, mm | 15.88 |
| Piping length (ODU-IDU) (Max.) | m | 50 |
| Piping length (1st Branch-IDU) (Max.) | m | 40 |
| Total piping length (System) (Max.) | m | 150 |
| Level difference (IDU-IDU) (Max.) | m | 15 |
| Refrigerant | R410A | |
| Factory Charging | kg / tCO2e | 2.5 / 5.22 |
| Sound Pressure2 (Cooling / Heating) | dB(A) | 55 / 57 |
| Sound Power | dB(A) | 75 |
| Weight | kg | 83.5 |
| Dimensions (W x H x D) | mm | 940 x 998 x 330 |
| Operating Temperature (Cooling) | °C | -5 ~ 48 |
| Operating Temperature (Heating) | °C | -20 ~ 24 |
Notes:
1Performances are based on the following test conditions:
- Cooling: Indoor temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB - Heating: Indoor temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB - Equivalent refrigerant piping: 7.5 m, Level differences:0 m
2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.
3ODU: Outdoor Unit,
IDU: Indoor Unit
| Manufacturer | Samsung |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | DVM S Eco |
| Outdoor Unit | AM050KXMDEH/EU |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Cooling Capacity (kW) | 14.00 |
| Heating Capacity (kW) | 14.00 |
| EER (Energy Efficiency in Cooling) | 3.50 |
| COP (Energy Efficiency in Heating) | 4.12 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 55 / 57 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 75 |
| Air Flow Outdoor Unit (m3/min) | 70 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 998 x 330 |
| Weight - Outdoor Unit (kg) | 83.5 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Maximum Pipe Lenght (m) | 50 |
| Maximum Height Difference Between Indoor Units (m) | 15 |
| Operation Range - Cooling (°C) | -5 ~ 48 |
| Operation Range - Heating (°C) | -20 ~ 24 |
| Refrigerant | R410A |
