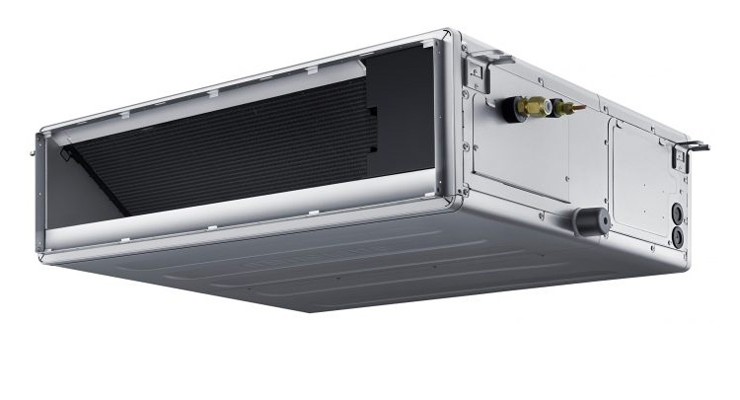

Duct Type Indoor Unit Samsung AE071MNMPEH/EU for EHS TDM PLUS Heat Pump System

  • Cooling
    7.10 kW
  • Heating
    8.00 kW
  • Noise
    29 dB


TDM Plus MSP Duct

  • External statuc pressure range from 0 to 1.4 mmAq.
  • Built-in electronic expansion valve (EEV) for refrigerant fl ow control (2000 step).
  • Long-life washable permanent fi lter is included.
  • Auto Restart function.
  • Built-in condensation drain pump (750 mmH2O).
  • SPi Ioniser device (optional).

Duct Type Indoor Unit Samsung AE071MNMPEH/EU for EHS TDM PLUS Heat Pump System

Duct Type Indoor Unit Samsung AE071MNMPEH/EU for EHS TDM PLUS Heat Pump System
TypeMSP Duct
ModelAE071MNMPEH/EU
Drain Pump (Built-in)MDP-G075SQ
Power Supply Φ, #, V, Hz 1Ф, 2, 220~240 V, 50 Hz
Performance Capacity Cooling / Heating kW 7.1/8.0
Power Power Input Cooling / Heating W 120/120
Current Input Cooling / Heating A 1.0/1.0
Fan Type - Sirocco Fan
Quantity EA 2
Air Flow Rate H/M/L (UL) m³/min 22 / 19 / 16
External Pressure Max. (Min/Std/Max) mmAq 0 / 3 / 15
Pa 0 / 29,4 / 147,2
Fan Motor Type - BLDC Feedback
Output x n W 153x1
Piping Connections Liquid Pipe Φ, mm (inch) 9,52 (3/8")
Gas Pipe Φ, mm (inch) 15,88 (5/8")
Refrigerant Type - R410A (Fluorinated greenhouse gas, GWP=2,088)
Sound Sound Pressure H/M/L dB(A) 37 / 33 / 29
Sound Power dB(A) 57
Dimensions Net Weight kg 25,5
Net Dimensions (W×H×D) mm 850x250x700
Optional Accessories Drain Pump Model - MDP-G075SQ (Built-in)
MDP-G075SP (External)
Max. lifting Height/
Displacement
mm / Litre/h 750 / 24
Series EHS TDM Plus
Indoor Unit AE071MNMPEH/EU
Power supply (V/ø/Hz) 230 / 1 / 50
Cooling Capacity (kW) 7.1
Heating Capacity (kW) 8.0
Power Input Cooling/Heating (kW) 0.12 / 0.12
Current for Cooling / Heating (A) 1.0 / 1.0
Sound Pressure Indoor Unit - Cooling dB(A) 37 / 33 / 29
Sound Pressure Indoor Unit - Heating dB(A) 37 / 33 / 29
Sound Power Indoor Unit - Cooling/Heating dB(A) 57 / 57
Dimensions - Indoor Unit WxHxD (mm) 850 x 250 x 700
Weight - Indoor Unit (kg) 25,5
Piping Connections - Liquid/Gas (mm) 9,52 / 15,88
